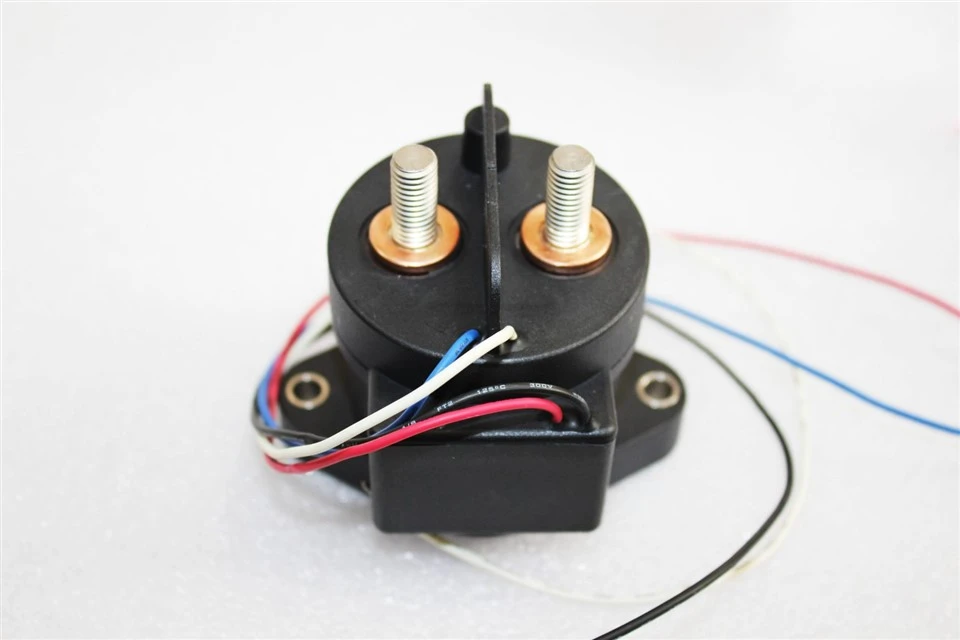

High Voltage Dc Relay
Structure and working principle of the DC relay: The DC relay is mainly composed of electromagnet, spring, contact and shell. When the direct current enters through the electromagnet of the relay, the resulting magnetic field causes the contact to close or open, thus realizing the control of the...
Structure and working principle of the DC relay:
The DC relay is mainly composed of electromagnet, spring, contact and shell. When the direct current enters through the electromagnet of the relay, the resulting magnetic field causes the contact to close or open, thus realizing the control of the output circuit. Similar to AC relays, the contacts of DC relays usually have a double blade construction to ensure reliable electrical connections.
Main characteristics of the DC relay:
1. Reliability: The DC relay has a simple structure and a long service life, so its reliability is high in the electrical system.
2. Accuracy: The DC relay has a high accuracy on the input signal, which can accurately control the state of the output circuit.
3. Rapid response: The DC relay can quickly respond to the change of the input signal and maintain the stability of the output circuit.
4. Flexibility: The DC relay can be designed to realize different switching operation and control modes.
Application of the DC relays:
1. Power system protection: The DC relay is used for overload protection, short circuit protection and ground fault protection in the power system to ensure the stable operation of the power grid and the safety of the equipment.
2. Automatic control: in the automatic control system, the DC relay is widely used in industrial equipment, mechanical control, automatic production line, etc., to realize the switch, control and protection function of the circuit.
3. Motor control: DC relay is used to control the start, stop and reverse of the motor to protect the motor from overload and excessive faults.
4. Electronic circuit: DC relay in the electronic circuit as a power switch, signal selection, repeater, etc., to realize the signal conversion and amplification.
